Safeway System-Full Automatic Hydraulic System Stainless Steel Parking Rising Bollards

Safeway System-Full Automatic Hydraulic System Stainless Steel Parking Rising Bollards

Safeway System - AT8200 hydraulic road blocker/barricade series are widely used in highway tool station, checkpoints, pr
Basic Info
Model NO. AT8200
Position Pedestrian Fence
Material Steel
Function Obstruction
Upright Post L350 * W350 * H1112mm
Post Fixation Embedded Type
Degree of Distortion Flexible Barrier
Opening Time 1-3s
Closing Time 1-3s
Transport Package Wooden
Specification L350 * W350 * H1112mm
Trademark safeway system
Origin China
HS Code 7308900000
Production Capacity 100sets/Month
Product Description

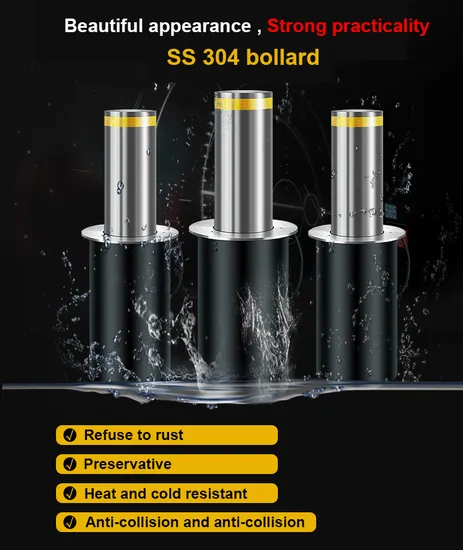

Safeway System-Full Automatic Hydraulic System Stainless Steel Parking Rising Bollards

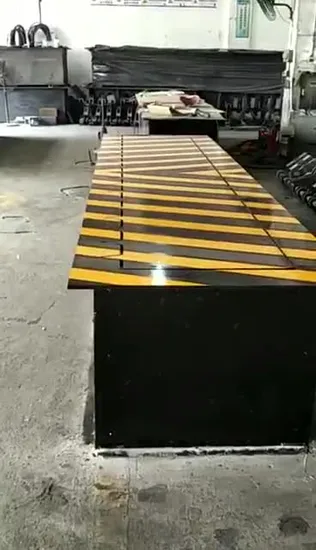

Safeway System - AT8200 hydraulic road blocker/barricade series are widely used in highway tool station, checkpoints, prisons, airports, government agencies, embassies, military base-station, custom ports, banks, industrial and mining companies, ports, warehouse, parking and all requests to control vehicle in and out restrict traffic places.
The lifting column equipment mainly consists of three parts: the lift Cylinder, hydraulic movement, electric control

1. The lift Cylinder:
The lifting column is mainly composed of lifting cylinder and base. The machine is steel structure, it is made of 7 mm thickness seamless steel pipe, welded, with high strength load-bearing and crash resistance; the outer wall is red warning color, equipped with yellow reflective belt, night can open built-in bright LED light, warning vehicle attention risk.
The device is buried in the lane or the designated location of the door, through the instructions of the staff on duty restrictions.

2. Hydraulic movement:
Hydraulic movement mainly by the fuel tank, motor, pump and other components, it is a complete set of lifting column system power source, the device installed in the lift column, and supporting the use of lifting column (through the control valve to change the rate of rise and fall), power failure through the backup power Manual decentralization.

3. Electronic Control System :
Automatic electronic control part: control board, sub-control board, leakage switch, no contact noise high life contactor, precision start time set (anti-cylinder stroke in place after the impact of increased fuel life), can be set to automatically rise (Plus the sense of the coil from the pole). Automatic controller: including control box, remote control, manual button, etc. by the duty control.

Main technical parameters:
Control system:electric hydraulic
System power:300W (single), multiple by the number of superimposed power
Weight capacity:more than 100 tons of container trucks
Opening time:1.5~3s ( can be adjustable)
Closing time:1.5~3s(can be adjustable)
Blade height:600mm
Column diameter:245mm.
Operating temperature:-35ºC-75ºC.
Storage temperature:-40ºC-75ºC,waterproof, dust-proof,
Hydraulic pressure is adjustable, the normal pressure should be adjusted below 50KGF, the maximum can not exceed 70KGF
Lifting column Dimensions L350 * W350 * H1112mm, raised after the height of 600 ± 5mm.
Product advantages:1. Fast speed up&down,Low Noise:
Lifting time up to 1.5 ~ 3s seconds and can be adjustable, far greater than the same specifications of other manufacturers of the column, which is extremely valuable. Because it uses hydraulic drive unit, action, soft and calm.
2. Control Sensitivity
Control unit using multi-function logic controller, it can adjust a variety of different functional modes to meet the different needs of different users in the function. In addition, it is worth mentioning that the movement of the adjustable stroke timing design, the user can freely control the height of the spikes, effectively save energy consumption.
3. Unique structure
The core part of the hydraulic unit and the mechanical power mechanism as a one-piece design, which can effectively transfer the mechanical energy to the hydraulic drive unit, action efficient. Hydraulic units to achieve the unique design of the pressure of the helicopter, excellent performance in the same field at home and abroad is very rare.
4. Safe and reliable
When the case of power outages and other emergencies, the hand can be an emergency drop, lift column can be reduced to open the channel, the release of vehicles. The upper and lower parts of the internal fixing mechanism are respectively equipped with current detection sensors and electromagnetic sensors, thus realizing the effective limit of the overcurrent protection and the cylinder action of the power unit, and the operation is stable and reliable.
5. Economy
As a result of their own motor drive mode, environmental protection and energy saving, low consumption, lower failure rate, longer life, reducing maintenance costs. In addition, the use of non-traditional steering mechanism design, installation and maintenance, more simple and quick.
Product features: 1. Durable,Overload,Operate Smoothly,Low Noise,Fast speed up&down
2. Micro-control technology makes bollards work stable and reliable,Easy integrate to other systems
Compatible with road barrier,Turnstiles and other access system control to achieve automatic control
3. Advanced mature Low pressure hydraulic drive technologies,high reliability, security and stability.
4. Manual hydraulic system device, meet fire management requirements (optional)
In the case of a power failure or in the event of failure, if the lift column is in the up state needs to fall, you can manually move the lifting column cover down to the horizontal position, so that vehicles pass (the system with a 12V spare battery)
5. Automatic hydraulic system device
Remote control device: through the wireless remote control mode, can be around the controller around 30 meters (according to the scene of the radio communication environment), activities, remote lift column lift. Manual button device: through the security room in the manual switch button control box, lift the corresponding lift column.
6.According to user requirements can be installed the following functions (system support):
Credit card control: install the card reader, through the credit card automatically control the lift column lift.
Barrier and lift column linkage: with barrier (block device) / access control, can achieve barrier, and access control and lift column linkage. And computer tube buried system or charging system connection: can be connected to the pipe system and the charging system, a unified computer control.
7.Convenient maintenance: When the case of structural failure or maintenance of the body, through the screw cap screws, the flap removed, the corresponding operation.
